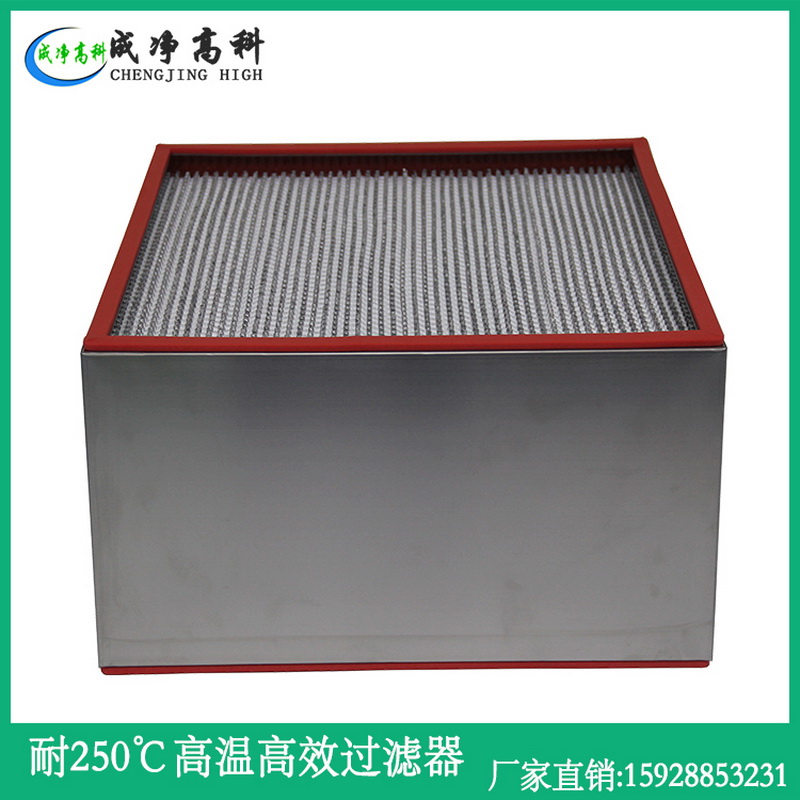

广西南宁中效空气过滤器|广西南宁高效空气过滤器High temperature resistant efficient air filter
特点 Features
●阻力低、容尘量大
●耐高温性能好
●主要用于超净烘箱等要求高温空气净化设备和系统.
●Low resistance and large amount of dust
●High temperature resistant performance is good
●Mainly used in high temperature oven laminar air purification equipment and systems.
构成材料及运行条件 Materials and operating conditions
●框材：不锈钢外框
●密封物：专用耐高温密封胶
●分隔物：铝箔
●滤料：玻纤滤纸
●使用温度、湿度：250~400℃、80%以内
●External frane：Stainless steel
●Sealant：High temperature resistant sealant
●Filter media：Aluminum foil
●Filter media：Glass fiber
●Use the highest temperature, humidity：250~400℃、80%
型号尺寸及其他参数(Standard specification)
|
型号 model |
外形尺寸 Outside dimensions (mm) |
额定风量 Rated air flow (m3/h) |
初阻力 Imitial resistance (Pa) |
效率（比色法） Efficiency (%) |
容尘量 Dust capacity (g) |
|
CJ-HT-A1 |
484×484×220 |
1000 |
≤220 |
≥99.99 |
600 |
|
CJ-HT-A2 |
610×610×150 |
1000 |
≤220 |
≥99.99 |
350 |
|
CJ-HT-A3 |
630×630×220 |
1600 |
≤220 |
≥99.99 |
400 |
|
CJ-HT-A4 |
610×610×292 |
2200 |
≤220 |
≥99.99 |
600 |
*可要据用户要求定制不同规格型号的过滤器
